Mica Band Stainless Steel Mica Heater Element WIth UL Certificate

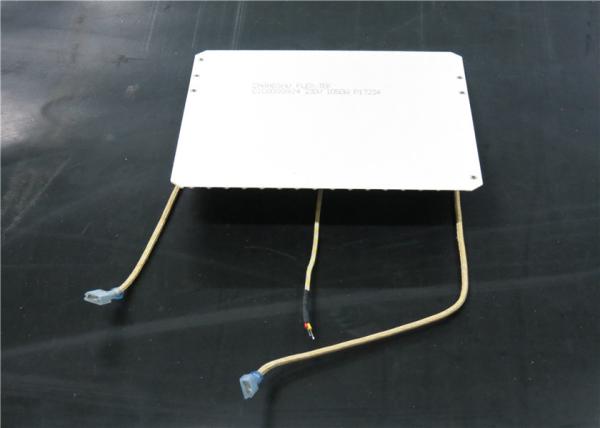

Tutco designs & Builds excellent mica heaters for all application, especially for lab equipment, medcial equipment and all kinds of surface heating applications. A custom mica surface heater for heat press equipment that replaced the heating element on the existing product line.
Mica band heaters are widely used on operations involving heating of cylindrical surface and are
manufactured in a full range of standard construction variations, physical dimensions, electrical rating,
and a complete arrangement of screw terminals and lead terminations.
These standard band heater variations and terminations do not represent the extent of our capabilities.
TY’s engineering staff, with many years experience in heat processing and temperature control
applications, can assist you in designing the right band heater for your specific applications.
Typical applications:
Plastic injection molding machines
Oil reclamation equipments
Drum heating
Holding tanks
Vending machines
Food service warming
Metallurgical analyzers
Hot runner molds
Plastic extruders
Food and candy extruders
Extrusion dies
Blow molding machines
Barrels and heads
Autoclaves and sterilizers
Fluidized Beds
Pulp and paper processing equipment
Construction Features:
Built-in bracket for clamping
Unbreakable screw terminals
Stainless steel built-in strap
Available two-piece design
Temperature up to 480 C
Flexibility to incorporate holes and cutouts
Performance ratings:
Maximum Temperature: 482C
Nominal Watt Density: 3-7W/cm²
Maximum Watt Density:
Dependent on heater size and operating temperatur
Physical size construction limitations:
Minimum width: 25mm
Width tolerance: 1.6mm
Minimum inside diameter: 30mm
Electrical rating:
Maximum voltage: 480V
Resistance tolerance: +10%, -5%
Wattage tolerance: +5%, -10%
