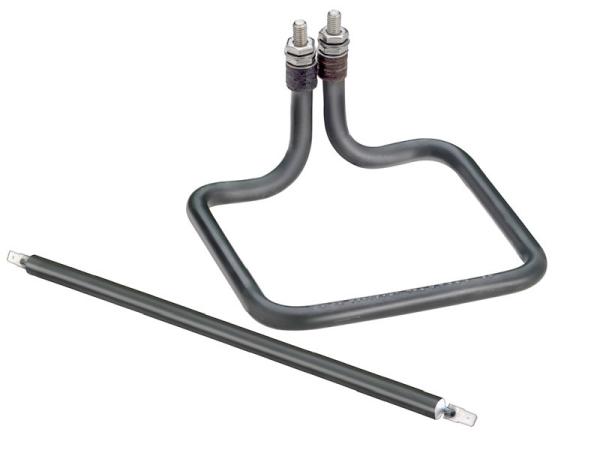

Food Heating Oven SUS304 Spiral Heater Heating Element
Electric Heating Element And Tube
Electric Heating Element And Tube also named tubular heaters,used for almost every kind of heating appliances.
They are easy to form and feature highest mechanic stability and electric properties at the same time.
Even though resistance heaters are technically rather mature and universal to use, there exist various new innovative solutions for many applications.
Feature
1. Resistance wire NiCr20/80
2. Available in stainless steel 304,321,316, Incoloy 800, Incoloy 840
3. Maximum temperature 800℃
Application
1. Injection moulding - Internal heating of nozzles
2. Hot runner systems - Heating of manifolds
3. Packaging industry - Heating of cutting bars, hot stamps
4. Laboratories - Heating of analytical equipment
5. Medical: Dialysis, Sterilization, Blood Analyzer, Nebulizer, Blood/Fluid Warmer, Temperature Therapy
6. Telecommunications: Deicing, Enclosure Heater
7. Transportation: Oil/Block Heater, Aircraft Coffee Pot Heaters,
8. Food Service: Steamers, Dish Washers,
9. Industrial: Packaging Equipment, Hole Punches, Hot Stamp.
Application
Mould, food packaging machine, glass machine,wood working machine,
medical machine, environmental machine,oven ect.
specification
Voltage: 12-440v
heat up fast, within 15 minutes to target temperature
working temperature ≤1100℃
wattage tolerance: rated power lower than 100w, ±10%
rated power up than 100w, ±5%
Insulation resistance: cold ≥ 500MΩ hot ≥50MΩ
When you order, please tell me:
1, voltage, power
2, tube diameter, usually 3-30mm
3, length of tube, min 20mm
4, material of tube( sus304 sus321 sus316L, 840,800,600, SUS310S,teflon ect)
5, heating wire inside ( fecral wire or nicr wire)
6, length of out side wire( 200mm 300mm or other)
you can tell me wher you use the tube, i will give you suggestion.
