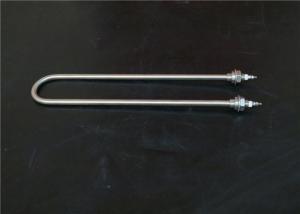

SS304 Incoloy Sheathed Tubular Heating Elements , U Shaped Heating Element

Product Categories
Changshu Flex-Tek Thermal Fluid Systems Manufacturer Co., Ltd.
Contact Now

SS304 Incoloy Sheathed Tubular Heating Elements , U Shaped Heating Element

Brand Name : Tutco

Model Number : 110V-240V, 3KW

Certification : UL

Place of Origin : China

MOQ : 1

Price : negotiation

Supply Ability : 500 pcs per day

Packaging Details : Standad Exporting Packing

Material : SS304, Incoloy

Shape : U shape, W shape

Wattage : 3KW

Performance : water proof

Warranty : 18 months

Brand : TUTCO

Contact Now

High Quality SS304 Incoloy Finned Immersion Water Tubular Heater Assembly UL

1. Type of the Finned Tubular heaters (Air Heater)

  • All heating wires are imported from USA to ensure the high quality.
  • Please note the application condition, material of the pipe and the density of the pipe surface will affect the life the heater. We ensure at least 3000 hrs life using in our recommended condition.
  • We recommend to us Inciloy840 if use the heater in the humid or caustic condition.
  • Please note, for those heaters with pipe material SUS321 and SUS304, per the ecommendation of UL499, the recommend highest surface temperature is 760℃ and we advise you lower it to 660℃.

2. Immersion Heater

Typical Application for Immersion Heaters

  • Water heating
  • Dishwasher heating
  • Washing machine heating
  • Coffee machine heating
  • Food equipment heating
  • Air to water heating

Features and Benefits:

Heat intensity Not exceeding 30W/cm2 (advisable)
Power Depends on the dimension
Escape of current (when cold) <=0.1mA a 242 v.
Insulation (when cold) 5 Min Ohmios 500 Watts minimum
Dielectric strength 1500v. 1/seg
Working temperature 750 °C max.
Tolerance of length +/-1.5%
Tolerance of diameter -0.01 a -0.06 m/m
Tolerance of cut of connexion +/-15 mlm
Power tolerance (w) 5 % - 10 %

3. Design Info need for heater inquiry

Please provide below info if you need us to develop a new design.

  • a. Input Wattage & Votage
  • b. The condition of the application
  • c. The shape of the heater
  • d. Dimension of the heater or the installation requirements
  • e. Material needed
  • f. Any requirement to the electrical property
  • g. Expected heater life
  • We will design the heater per UL499 if no special items required.

SS304 Incoloy Sheathed Tubular Heating Elements , U Shaped Heating ElementSS304 Incoloy Sheathed Tubular Heating Elements , U Shaped Heating Element
